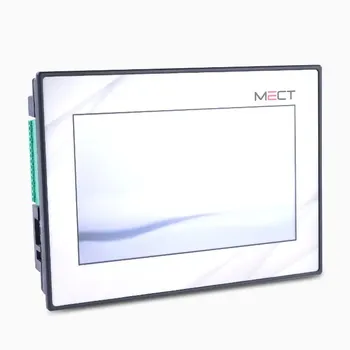

PLC Panel with HMI Monitor Touch-Screen 7" TPX1070
Based on an ARM9 architecture, the TPX1070 operator panel is a PLC with a 7-inch touch-screen human-machine interface device that integrates QT graphics libraries.
The operator panel with PLC can be supplied with horizontal or vertical monitor. The software "MECT SUITE" is released in OpenSource.
The service of Remote Connection and Monitoring sMily, indispensable for Industry 4.0, for remote control of the device, from anywhere, at any time.
Description
There are digital inputs and outputs on the TPX1070 PLC operator panel: 4 PNP fast inputs, 4 PNP fast outputs with the possibility of expansion.
The TPX1070 PLC operator panel is equipped with Modbus RTU protocols on RS485 interface, Modbus TCP and TCPRTU on Ethernet interface.
The 2 USB ports are used as hosts for datalogging and software updating, or as mass-storage devices.
A micro SD memory up to 64GB can be installed on the TPX1070 PLC operator panel for programs and data.
SOFTWARE
To configure your TPX1070 PLC operator panel, a software package called "MECT SUITE" which contains software for configuring the system and creating the PLC application and HMI graphical application:
Qt Creator:
- Graphic generation of the HMI application (page graphics);
- Generation and definition of system variables;
- Configuration of communication parameters;
- Preliminary settings of the Operator Panel;
- Easy entry of elements associated with PLC variables;
- Pre-packaged pages for recording/logging;
- Ability, if necessary, to use Qt/C++ code;
- Complete debugging of the HMI application.
ATCMControl:
- Generation of the PLC application (in the 5 IEC 61131-3 languages);
- In addition to a variety of libraries, those of PID and self-tuning are available;
- Complete debugging of the PLC application.
Thousands of retentive variables are available on the PLC TPX1070 operator panel (the value is retained while the operator panel is turned off).
IS ALSO AVAILABLE IN A VERTICAL VERSION.
Features
SOFTWARE
Operating system: LINUX Real Time
Graphics libraries: QT
PLC: programmable with the 5 IEC61131-3 standard languages: Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), Ladder Diagram (LD), Instruction List (IL)
PLC application monitor for debugger
Setup() & Loop(): possibility to create own application even with only HMI environment (C/C++)
Modbus RTU / TCP / TCPRTU (master/slave)
Datalogger - Trend - Recipes - Alarms
WiFi and Mobile network management by optional USB pen drive
Control with VNC
NTP (Network Time Protocol)
Remote connection Open Vpn
SFTP Secure Server (Win SCP)
Access to MySQL/SQLite databases
Easily get log values within Web applications (HTTP + JSON)
Client MQTT (Eclipse Mosquitto library)
HARDWARE
CASE: plastic case
DISPLAY: 7" 800x480 TFT 262k colors
CPU: ARM926 32 Bits 454 MHz processor
DRAM: 128 MB DDR2
FLASH: 128 MB
MASS STORAGE: 64 GB Micro SD (FAT formatting with single partition)
RTC
COMMUNICATION PORTS:
- 1 Ethernet port (10/100Base-T)
- 2 USB 2.0
- 1 RS485 2-wire (non-isolated)
- 1 RS485 4-wire (non-isolated)
INPUTS/OUTPUTS:
- 4 Fast inputs (PNP 0-24Vdc)
- 4 Fast outputs (PNP 0-24Vdc)
- Ability to expand the number of inputs/outputs
For relay outputs, match the product ACIN01.
Power supply: 12÷36Vdc, 300mA @ 24Vdc
Dimensions: 145 x 195 x 60.5 (H x W x D)
Weight: 0.50kg
Mounting plate: 138 x 188 mm
LCD DISPLAY
Display: TFT LCD
Size: 7"
Colors: 262,000
Resolution: 800x480
Brightness (cd/m2): 500
Backlight: LED
ENVIRONMENTAL SPECIFICATIONS
Operating temperature: 0°/+50°C
Storage temperature: -20°/+60°C
Relative humidity: 10%-90%@40°C
Protection: IP65 on the front
ADDITIONAL INPUTS AND OUTPUTS
In case remote input/output modules need to be used, the following models can be used:
- MPNE1001: module of 8 digital inputs + 8 programmable digital inputs/outputs + analog and digital expansions.
- MPNC006: 8 digital + 2 universal analog inputs/outputs module.
- MPNC020: 16 digital input/output module.
- MPNC030: 4 universal analog inputs module.
- MPNC035: module with 4 universal analog outputs.
HMI con PLC serie TPX1070 MANUALE D'USO (IT)
