Description

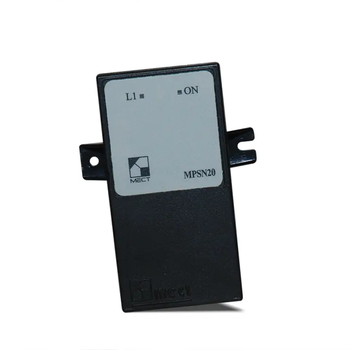

The air velocity sensor MPSN20 is composed by a sensible element wired to an electronic circuit in a plastic housing. The equipment has 3 connections for the supply and the 4÷20mA analogue output.
Features
Housing dimensions: 43,5 mm x 84,5mm (17 mm depth)
Sensor dimensions: 7,5 mm x 22,5mm (3.5mm depth)
Wire length: 1 mt
Power supply: 15Vdc +/- 10%
Power absorption: 50mA
Output: 4÷20mA
Max load for current output: 100Ω
Velocity range: 1÷10mt/s - 1÷12mt/s
Temperature range: 15÷35 °C
| MODELLO | CAMPO DI MISURA | |
|---|---|---|
| MPSN 20 | 10: 10mt/s | |
| 12: 12mt/s |
MANUALE MPSN20 (IT)
