TPLC050 Modular PLC
Based on an ARM9 architecture, the PLC model TPLC050 features a modular and flexible structure.

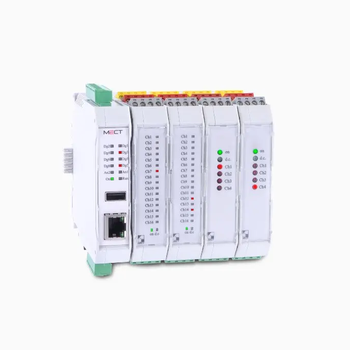

The PLC model TPLC050 is expandable with MPNC family modules, including. MPNC020, MPNC030 e MPNC035. The different combinations of analog-digital I/O communicate with each other via internal real-time bus on DIN rail.
VNC functionality provides access to a "Virtual HMI" for displaying customized synoptics without the need for an operator terminal/panel.
The service of Remote Connection and Monitoring sMily, which is indispensable for Industry 4.0, for remote control of the device from anywhere, at any time.
Description
There are digital inputs/outputs and analog inputs on the PLC model TPLC050, namely: 8 PNP digital inputs/outputs (configurable via software) and 2 analog inputs.
PLC model TPLC050 is equipped with Modbus RTU protocols on RS485 interface, Modbus TCP and TCPRTU protocols on Ethernet interface.
USB port is used as a host for datalogging and software updating.
SOFTWARE
To configure your PLC model TPLC050, a software package called "MECT SUITE" which contains software for configuring the system and creating the PLC application and if desired, the graphical HMI application:
Qt Creator:
- Graphic generation of the HMI application (page graphics);
- Generation and definition of system variables;
- Configuration of communication parameters;
- Preliminary settings of the Operator Panel;
- Easy entry of elements associated with PLC variables;
- Pre-packaged pages for recording/logging;
- Ability, if necessary, to use Qt/C++ code;
- Complete debugging of the HMI application.
ATCMControl:
- Generation of PLC application (in the 5 languages conforming to IEC 61131-3 standard);
- In addition to a variety of libraries, those of PID and self-tuning are available;
- Complete debugging of the PLC application.
Thousands of retentive variables are available on the PLC model TPLC050 (the value is retained during plc shutdown).
Features
SOFTWARE
Operating System: LINUX Real Time
Graphics Libraries: QT
PLC: programmable with the 5 standard IEC61131-3 languages: Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), Ladder Diagram (LD), Instruction List (IL)
PLC application monitor for debugger
Modbus RTU / TCP / TCPRTU (master/slave)
Datalogger - Trend - Recipe - Alarms
Wi- network management.Fi + Mobile with optional USB stick
Control with VNC
NTP (Network Time Protocol)
Remote connection Open Vpn
SFTP Secure Server (Win SCP)
Access to MySQL/SQLite databases
Easily get log values within Web applications (HTTP + JSON)
Client MQTT (Eclipse Mosquitto library)
HARDWARE
CASE: plastic case
CPU: ARM926 32 Bits 454 MHz processor
DRAM: 128 MB DDR2
FLASH: 128 MB
Real Time Clock
COMMUNICATION PORTS:
- 1 Ethernet port (10/100Base-T)
- 1 USB 2.0
- 1 RS485 2-wire
INPUTS/OUTPUTS:
- 8 Digital inputs/outputs (PNP 0-24Vdc) configurable as desired via software
- 2 Analog inputs (0÷10V, 0÷20mA, PT100, TC: J, K, T, S, B, R)
For relay outputs, match the product ACIN01.
Power supply: 24Vdc +/-15%, 150mA
Dimensions: 115 x 22 x 120 mm (H x W x D)
Weight: 0.20kg
Wiring: pull-out terminal blocks
ENVIRONMENTAL SPECIFICATIONS
Operating temperature: 0°/+55°C
Storage temperature: -20°/+85°C
Relative humidity: 10%-90%@40°C
Protection: IP20
ADDITIONAL INPUTS AND OUTPUTS
In case additional input/output modules need to be used, the following models can be used:
